Reference overlays for framing deliverables across social, web and broadcast destinations.

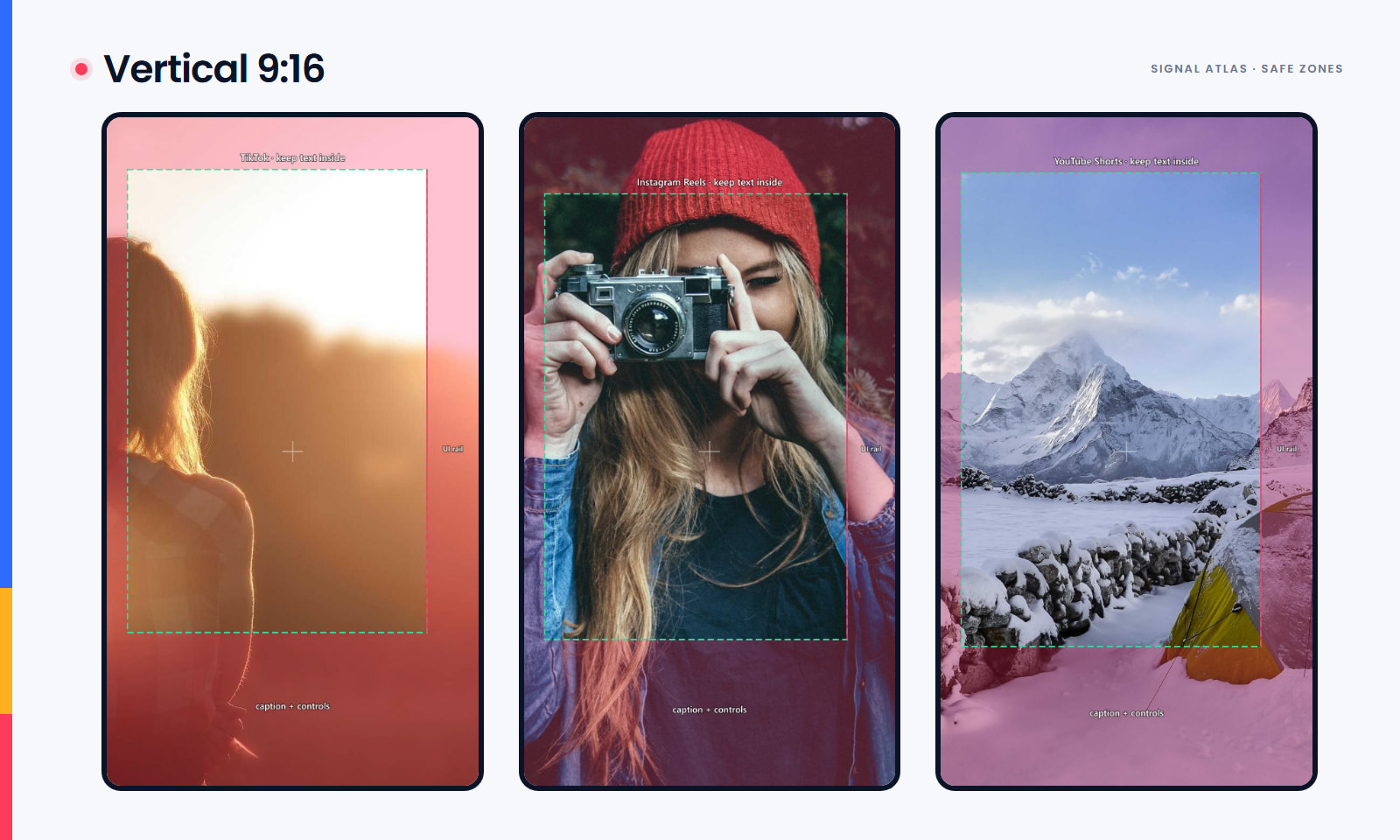

Vertical 9:16 (1080 × 1920) TikTok · Instagram Reels · YouTube Shorts · All Platforms Combined (the intersection of the three), each in Shaded and Lines versions.

Feed Portrait 4:5 (1080 × 1350) and Square 1:1 (1080 × 1080), with a 5% margin and the 3:4 profile-grid crop.

Landscape

• YouTube end-screen element area and duration-badge region

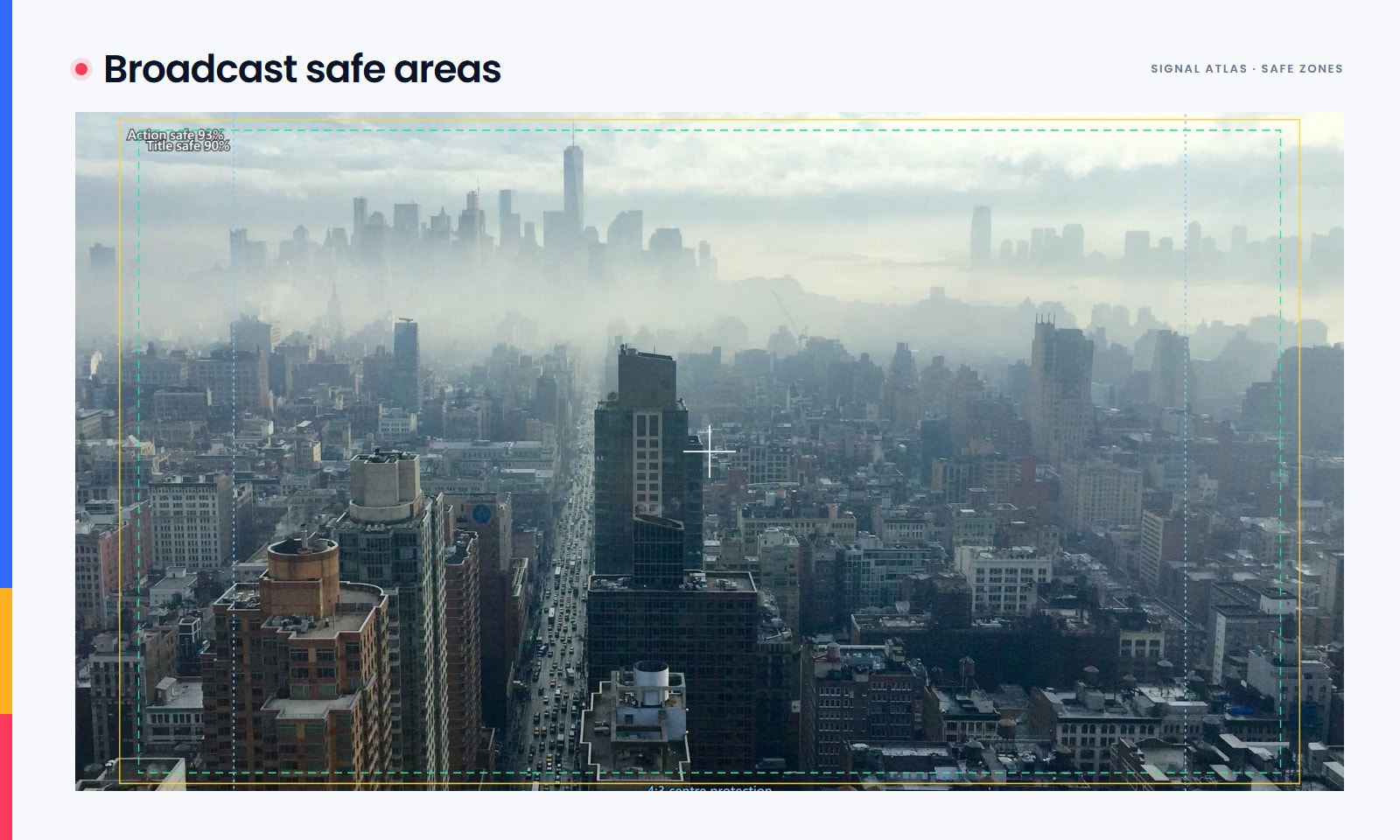

• Action safe 93% / Title safe 90% per SMPTE ST 2046-1, plus 4:3 centre-cut protection (1080p and UHD)

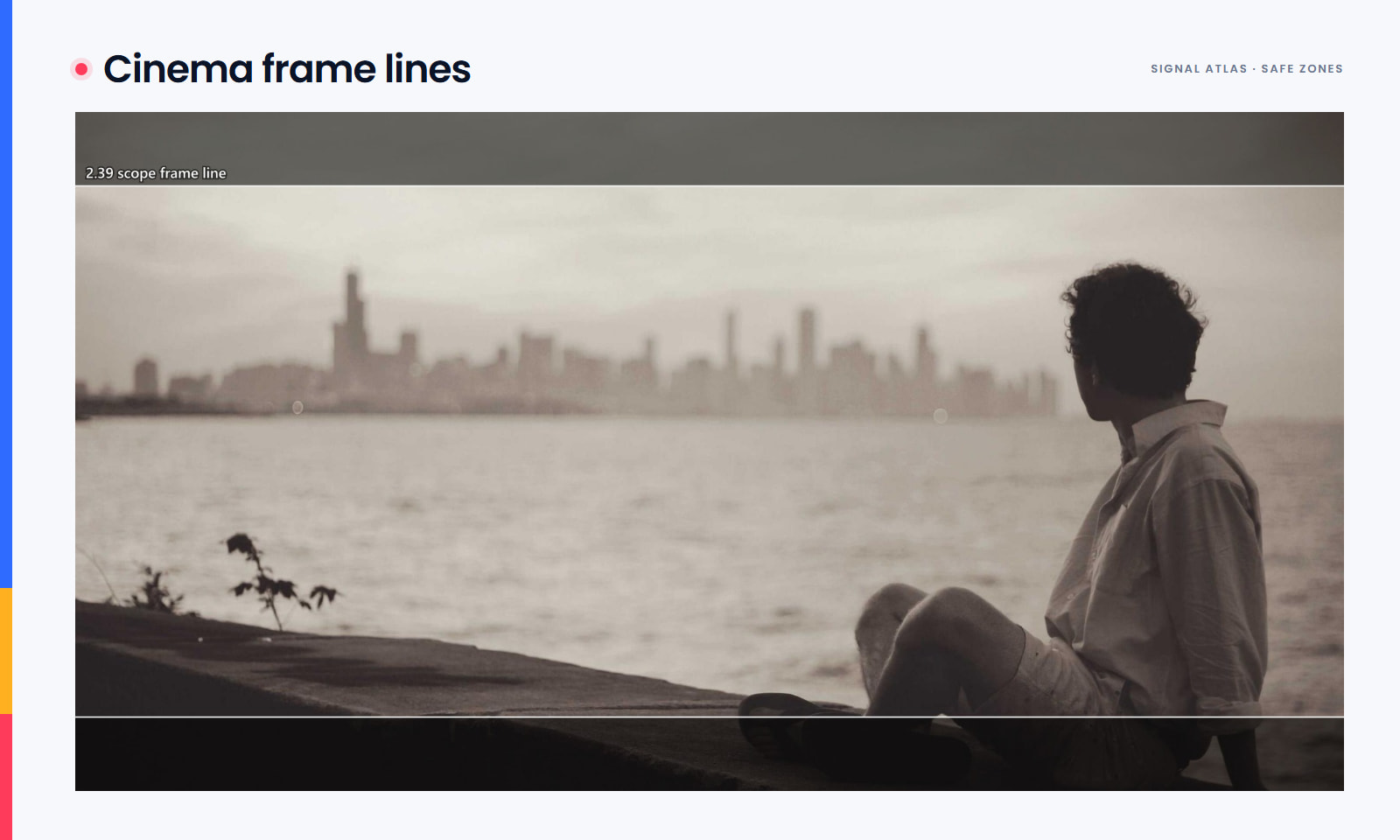

• Frame lines: 2.39:1, 2.00:1, 1.90:1, 1.85:1 (1080p and UHD)

Usage Place on the top video track and disable the track before rendering. Transparent PNG at native resolution.

Platform interfaces change without notice. Vertical zones are conservative unions measured on current app layouts and will be revised as layouts change.

Free.
